General:

• Seal style: 3/8″ wide hermetic smokeless and odourless seal.
• Seal band: 1″ wide X 40″ long x 8 mil., heavy duty Teflon sealing bands with reinforced butt splice.
• Materials accepted: Polyethylene, polypropylene, Tyvek, Poly Mylar, foil/PE, Cryovac, Co-extrusions, nylon, and polylaminates.

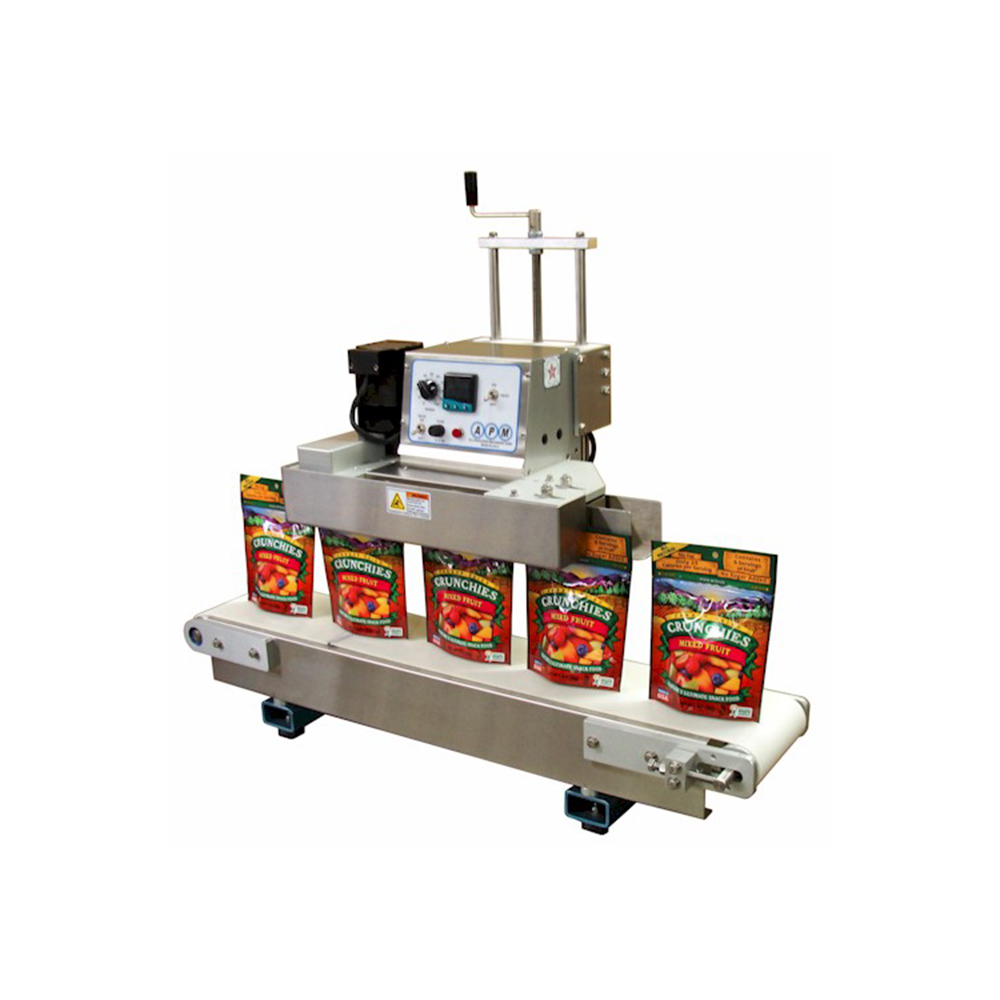

• Frame: Mounted on 2 ft high tabletop stand that allows for adjustable sealing height with hand crank assembly and twin guide shafts.
• Conveyor: Supplied with 6″ wide slider bed conveyor with overall length of 3′-0″ and driven from discrete Bodine AC synchronous gear motor from a common KB Electronics AC drive that also powers the Teflon
• Sealing assembly: Chrome plated brass seal bar assemblies with a post nickel plated cooling section. Heating section consists of a 5″ long rear bar with a 305 W element and two 2-1/2″ long front bars each with a 125 W element. Uses heavy duty 6 mil thickness Teflon bands, left and right to isolate the substrate to be sealed from the sealing bars. Driven by a discrete Bodine AC synchronous gear motor from a common KB Electronics AC drive that also powers the carry conveyor.
• Bag transport: One set of 1″ wide Teflon bands are responsible for transporting the bag through the sealer.
• Speed: Up to 45 fpm with ultra quiet AC gear motor.
• Scrap removal: Not applicable as there is not a trim function.
• Air supply: No compressed air required.
• Compatibility: Designed to operate as a standalone unit with SBP bag loaders.
• Approval(s): USDA. All electrical components are UL approved. Electrical Safety Authority (Or equivalent) approval is included.

Features:

• Chrome plated sealing assemblies followed by nickel plated cooling section.
• Anodized aluminum chassis sealing assembly.
• Stainless steel shafting throughout.
• Preheat design on Smokeless and odourless models thus eliminating warm up time.

Structure:

• Anodized aluminum frame and structural cradle.
• Stainless steel shafting and heavy duty gearing in the belt drive assemblies.
• All covers are stainless steel.

Electrical Requirements:

120 volt, 1 amp, 1 phase, 60 cycle

Options:

• One or two line embossing coder for product marking.
• Infeed gravity roller.
• Infeed table.
• Pressure rollers to replace cooling bars for side gusset bags.
